7 Steps to Create a Visual Workflow Board for Teams

Last updated June 2026
Originally published October 23, 2025. Refreshed with expanded lean manufacturing visual management methods for factory, operations, and continuous improvement teams.

Visual workflow boards transform chaotic team processes into clear, actionable systems that drive productivity, accountability, and collaboration. Whether you're managing software development sprints, marketing campaigns, production schedules, maintenance work orders, quality escapes, or daily factory performance, a well-designed visual workflow board serves as the central nervous system for your team's work.

In lean manufacturing, visual management is more than "putting work on a board." A good visual system makes the difference between normal and abnormal obvious at a glance, shows who owns the next action, and triggers the right response without waiting for another meeting, report, or email thread. The board should help the team see:

• What should be happening

• What is actually happening

• Where work is blocked

• Who owns the countermeasure

• When the next action is due

• Whether yesterday's problem is still open today

We've spent the last sixty years working with teams of all shapes and sizes to help visualize their work; from developing project management systems for small businesses, to designing better ways to track production, sales, service, safety, and staffing workflows. We've come to learn there's no process that can't be visualized. Using our expert guidance, this expanded practitioner guide walks you through seven proven steps to create an effective visual workflow board that aligns your team around shared goals, measurable outcomes, and lean daily management.

What Makes a Visual Workflow Board "Lean"?

A workflow board becomes a lean visual management tool when it does more than display status. It should help the team expose waste, shorten feedback loops, and improve the process. In practical terms, that means the board should support at least one of these lean purposes:

Lean Purpose	What the Board Makes Visible	Typical Board Examples
Flow	Work moving from request to completion	Kanban board, production flow board, order fulfillment board
Abnormality	Gaps between target and actual	SQCDP board, hour-by-hour board, quality alert board
Standard work	The expected way to complete work	Standard work board, training matrix, 5S audit board
Problem solving	Root cause, countermeasures, owners, due dates	Kaizen board, A3 board, action item board
Pull and WIP control	Work authorized by demand and capacity	Kanban card board, replenishment board, material signal board
Accountability	Who owns the next action	Tier meeting board, escalation board, project tracker

The strongest visual workflow boards are simple enough for a new team member to understand quickly, but structured enough to drive disciplined daily action.

Step 1: Identify Your Team's Workflow Goals

Before diving into board design, successful workflow visualization begins with defining crystal-clear objectives. The ultimate question you need to ask yourself is, "What am I looking to accomplish?" Teams that establish specific goals for their workflow boards create a foundation for measurable success and sustained adoption across their organization. After all, if you know what you're tracking, you know what needs to be included.

Start by defining what efficiency looks like for your specific team context. For a software development team, this might mean reducing the time between code commits and deployment. For marketing teams, efficiency could translate to faster campaign approvals or clearer content review processes. Customer service teams might focus on reducing response times or improving case resolution rates. In a factory, it might mean improving schedule adherence, reducing changeover delays, exposing quality defects earlier, or keeping 5S audit actions from disappearing after the audit.

Once you've settled on what you're measuring against, document your target outcomes in concrete terms. Rather than vague aspirations like "better communication," specify measurable goals such as "reduce project handoff time," "make all overdue work visible during the daily huddle," or "ensure every red KPI has an assigned countermeasure before the meeting ends." These specific targets become the benchmarks against which you'll evaluate your workflow board's effectiveness.

The business case for workflow visualization is compelling. Research shows that data-driven firms make decisions faster when they visualize their processes effectively. This acceleration occurs because visual workflows turn complex processes into actionable visuals that improve clarity and efficiency across all team members.

Consider creating a simple goals matrix that maps each objective to specific metrics. For example, if your goal is improved task ownership, your metric might be "zero tasks without assigned owners for more than 24 hours." This approach ensures your workflow board serves strategic purposes rather than becoming just another organizational tool.

Board Goal	What "Good" Looks Like	Metric or Visual Signal	Review Rhythm
Improve task ownership	Every active item has one clear owner	Owner magnet, name, or initials on each card	Daily
Reduce blocked work	Blocked items are visible and escalated quickly	Red blocker marker or blocked column	Daily
Improve schedule adherence	Production misses are visible by shift or day	Target vs. actual chart	Shiftly or daily
Strengthen 5S discipline	Audit findings become closed countermeasures	5S score trend plus action register	Weekly
Improve quality response	Defects trigger containment and root cause review	Quality alert section with owner and due date	Daily or weekly

Lean methodology in practice: stand up a 5S audit board

A 5S audit board is one of the most practical starting points for lean visual management because it connects standards, accountability, and workplace discipline in one visible place. The board should not exist only to post a score. It should make the current condition of the area visible and drive action when the standard is not met.

A strong 5S audit board includes sections for:

1. Area or zone map
   Show the physical area being audited: cell, line, department, warehouse zone, tool crib, maintenance shop, or office space. If the workplace is divided into zones, assign ownership by zone so there is no confusion.

2. 5S audit checklist
   Organize the checklist around the five 5S categories:

   • Sort: Are unnecessary tools, materials, documents, obsolete parts, and clutter removed?

   • Set in Order: Are needed items located, labeled, easy to access, and returned to the correct place?

   • Shine: Is the area clean, inspectable, and free of leaks, dust, debris, or hidden abnormalities?

   • Standardize: Are visual standards, labels, photos, cleaning routines, and audit criteria clear?

   • Sustain: Are audits completed on schedule, actions closed, and standards maintained over time?

3. Audit schedule and owner
   Display who performs the audit and when. Many teams use a mix of operator self-checks, supervisor checks, and cross-area audits to keep the system honest.

4. Score or status trend
   Use a simple visual trend so the team can see whether the area is improving, holding, or sliding backward. Do not let the score become the only focus. A high score with recurring open actions is not a healthy 5S system.

5. Before and after photos
   Photos are powerful visual standards. "What good looks like" should be obvious. Use before/after images when correcting a condition, and use standard-condition photos for recurring checks.

6. Red-tag or abnormality parking lot
   Create a section for items that need disposition: unknown parts, excess inventory, broken tools, obsolete fixtures, expired materials, or unneeded documents. Each item should have an owner and decision date.

7. Countermeasure/action register
   Every audit gap should become an action item with:

   • Problem or finding

   • Area or location

   • Owner

   • Due date

   • Current status

   • Verification of closure

A simple 5S audit board layout can look like this:

Board Section	Purpose	Practitioner Tip
Zone Map	Shows exactly what area is covered	Assign names to zones, not just departments
5S Checklist	Defines audit criteria	Keep criteria observable and specific
Audit Calendar	Shows audit rhythm	Mark missed audits visibly
Score Trend	Shows sustainment over time	Use trend to trigger coaching, not blame
Red-Tag Area	Captures items needing disposition	Require owner and decision date
Action Register	Converts findings into countermeasures	No finding should remain ownerless
Standard Photos	Shows expected condition	Update photos when the standard changes

The key is to make 5S a living management system. If the board only records audit scores, it becomes wallpaper. If it exposes gaps, assigns owners, and verifies follow-through, it becomes a lean visual control.

Step 2: Break Down the Workflow into Manageable Tasks

Complex workflows become manageable when decomposed into distinct, actionable steps. This breakdown prevents the confusion and miscommunication that often plague teams working with poorly defined processes. In fact, we find the process so effective that we've developed a project management board specifically designed for step-by-step breakdowns.

Begin by mapping your entire workflow from start to finish. Gather your team for a collaborative session where you trace each step of your current process, regardless of how informal or inconsistent it might be. Document every handoff, decision point, and deliverable, even those that seem obvious or automatic. After a few conversations, you should have a strong feel for where these breakout steps belong in your overall project timeline.

Transform this comprehensive map into discrete, manageable actions. Each task should be specific enough that team members understand exactly what needs to be accomplished and when it's considered complete. Instead of "review content," specify "review blog post for grammar, brand voice, and SEO optimization." Instead of "run job," specify "complete setup, verify first-piece approval, run production, record downtime, and move completed quantity to inspection." These milestones become checkpoints throughout your project timeline.

Research confirms that breaking down complex tasks reduces confusion and miscommunication significantly. This improvement occurs because smaller, well-defined tasks eliminate ambiguity about expectations and deliverables.

Create a structured task inventory using a simple table format:

Task Name	Description	Estimated Time	Prerequisites	Deliverable
Content Review	Check grammar, voice, SEO	2 hours	Draft complete	Approved content
Design Creation	Create supporting visuals	4 hours	Content approved	Final graphics
Setup Verification	Confirm tooling, material, program, and work instruction	Varies by process	Work order released	Setup ready for first-piece check
First-Piece Approval	Inspect first part against quality requirements	Varies by process	Setup complete	Approved first piece or correction required
Final Packout	Package, label, and stage finished goods	Varies by order	Quality release	Order ready to ship

This systematic approach to task breakdown becomes the foundation for your visual workflow board's structure and ensures nothing falls through the cracks during implementation.

Step 3: Assign Clear Roles and Responsibilities

Accountability thrives when every team member understands their specific responsibilities within the workflow. Clear role assignment eliminates the ambiguity that leads to missed deadlines, duplicated efforts, and finger-pointing when problems arise.

Document exactly who owns each task or workflow stage. This can be done via a digital assignment tracking tool or right on the project management system itself. Wherever you choose to list assignments, you need to make sure assignees are aware of the ownership. Assignments need to be highly visible and eliminate any confusion. Avoid shared ownership without clear primary responsibility, as this often results in tasks falling through the cracks. Instead, designate a single point person for each major workflow component while identifying supporting team members who contribute to the process.

Effective role clarity requires outlining both responsibilities and deliverables. Specify not just who does what but what constitutes successful completion of each responsibility. This clarity reduces potential overlaps and missed steps that can derail even well-intentioned team efforts.

Consider implementing a responsibility matrix that maps tasks to team members:

Workflow Stage	Primary Owner	Supporting Members	Success Criteria
Content Planning	Marketing Manager	Content Writer, SEO Specialist	Approved content calendar
Content Creation	Content Writer	Subject Matter Expert	Draft ready for review
Quality Review	Editor	Marketing Manager	Content meets brand standards
Production Scheduling	Planner	Supervisor, Materials Lead	Schedule released with material availability confirmed
Line Execution	Area Supervisor	Operators, Maintenance, Quality	Job completed to standard, quantity, quality, and timing requirements
Corrective Action	Assigned Problem Owner	Quality, Engineering, Production	Root cause addressed and effectiveness verified

This structured approach to role assignment creates transparency around expectations and provides clear escalation paths when issues arise. Team members can quickly identify who to contact for questions, approvals, or problem resolution.

Regular role clarification sessions help maintain accountability as teams evolve and workflows change. Schedule quarterly reviews to ensure role assignments remain current and effective for your team's changing needs.

Lean methodology in practice: run an SQCDP daily management cadence

In manufacturing and operations environments, one of the most effective ways to turn role clarity into daily accountability is an SQCDP board. SQCDP stands for:

• Safety

• Quality

• Cost

• Delivery

• People

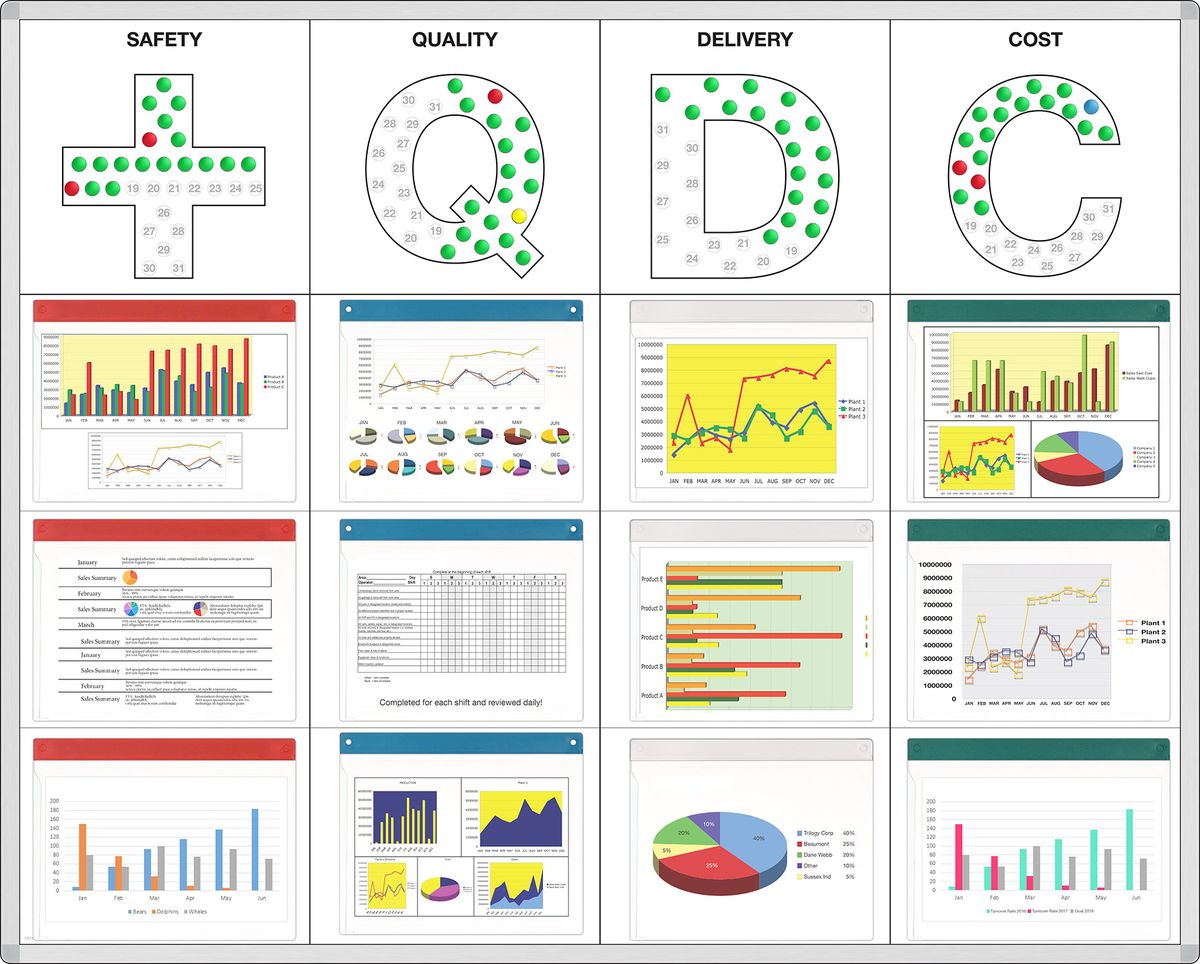

SQDC boards are typically used in a daily tier or standup meeting rhythm. The purpose is not to give long updates. The purpose is to compare actual performance to target, identify abnormalities, assign countermeasures, and escalate problems that cannot be solved at the current level.

A practical SQCDP board should answer five questions every day:

SQCDP Category	Daily Question	Example Visuals
Safety	Did we work safely yesterday and are there risks today?	Near misses, unsafe conditions, safety observations, open safety actions
Quality	Did we meet the quality standard?	Defects, rework, scrap, first-pass yield, customer complaints, quality alerts
Cost	Did we use resources as planned?	Overtime, scrap drivers, downtime cost categories, material waste, efficiency gaps
Delivery	Did we meet the schedule or customer commitment?	Schedule attainment, late orders, at-risk shipments, production plan vs. actual
People	Do we have the staffing, skills, and engagement needed?	Attendance, training matrix, cross-training gaps, suggestions, support needs

A typical tiered cadence may look like this:

Tier	Who Attends	Focus	Typical Board Use
Tier 1	Operators, cell leads, frontline supervisor	Yesterday's performance, today's plan, immediate blockers	Cell or line SQCDP board
Tier 2	Supervisors, support functions, value stream leaders	Escalated issues from Tier 1	Department or value stream board
Tier 3	Plant leadership, functional managers	Cross-functional constraints, resources, priorities	Site daily management board
Tier 4	Senior operations leadership	Systemic issues, business-level risks	Executive operations review board

The rhythm matters. If the board is only updated before a weekly meeting, the team loses the daily management benefit. A useful SQCDP routine includes:

1. Update before the huddle
   Owners update yesterday's actuals, red/green status, blockers, and open actions before the meeting starts.

2. Start with Safety
   Safety should not be buried at the end of the meeting. Discuss unsafe conditions, near misses, and open safety countermeasures first.

3. Review red conditions first
   Green items should move quickly. The team's attention should go to abnormalities and decisions.

4. Assign one owner per action
   Every red SQCDP item needs a clear owner, due date, and next step. "Team to review" is not ownership.

5. Escalate unresolved issues
   If a problem cannot be solved at Tier 1, it should move visibly to the next tier with context, not disappear into a side conversation.

6. Close the loop
   Completed actions should be verified, not simply erased. If the same problem returns, it may require root cause analysis instead of another quick fix.

An SQCDP board creates a practical daily management cadence because it forces the organization to look at performance through a balanced lens. Delivery cannot improve at the expense of safety. Cost cannot improve by hiding quality problems. People gaps cannot be ignored until they become schedule misses.

Step 4: Choose the Right Visual Board and Document Your Workflow

Selecting the appropriate visual format for your workflow board determines how effectively your team can interpret and act on the information presented. Different visualization approaches serve different workflow types and team preferences.

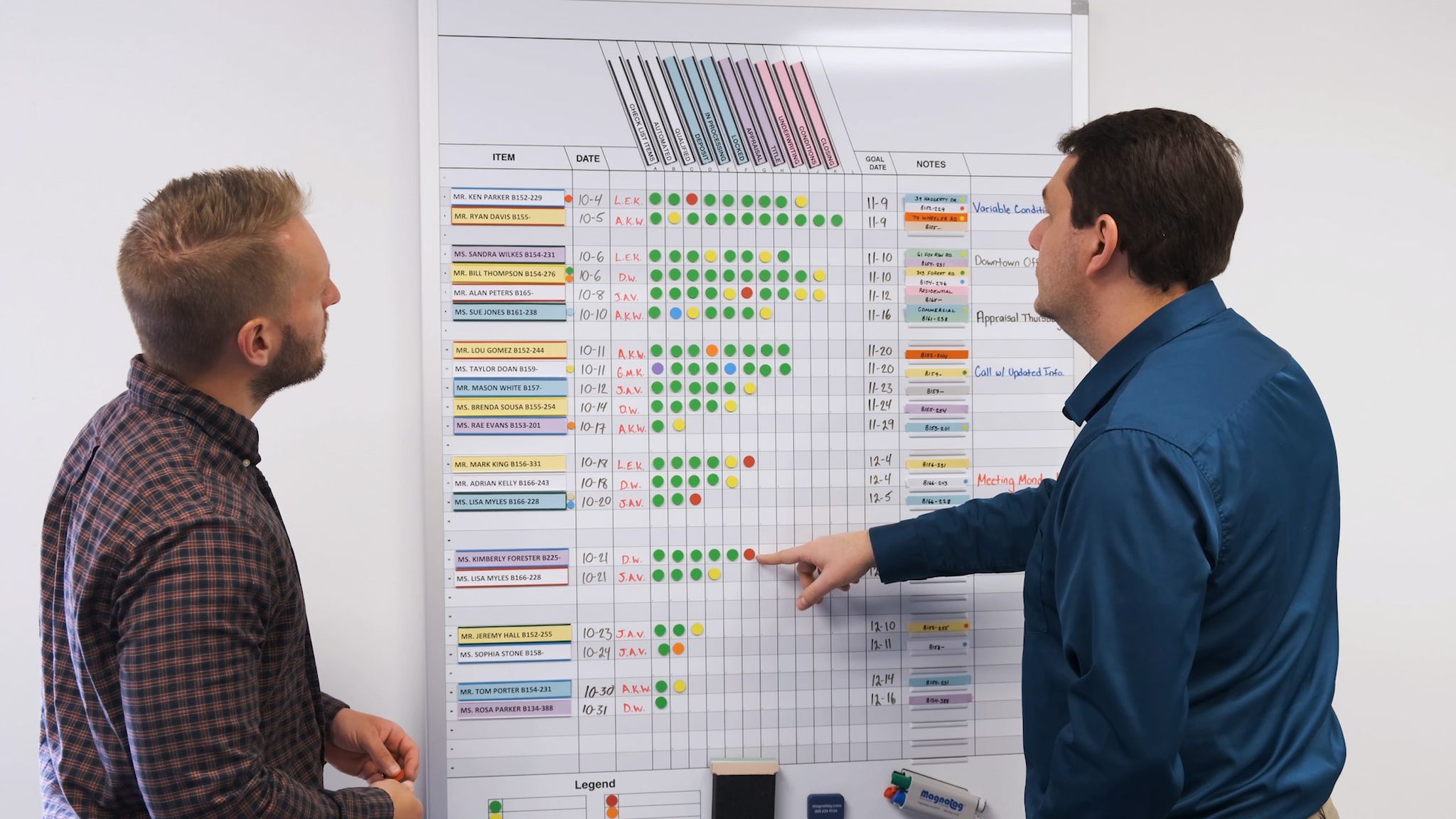

A Kanban board uses columns and cards to represent task stages and progress, making it ideal for continuous workflows where tasks move through predictable stages. Software development teams often favor Kanban boards for tracking features from backlog through deployment, while marketing teams use them to manage content from ideation through publication. In manufacturing, Kanban boards can also support replenishment, production authorization, maintenance requests, tooling queues, and internal service workflows.

Flowcharts employ shapes and arrows to represent process steps and decision points, excelling at mapping workflows with multiple decision branches or complex approval processes. These diagrams work particularly well for documenting procedures that involve conditional logic or multiple possible outcomes.

Swimlane diagrams divide workflows into parallel lanes for different roles or departments, providing exceptional clarity for cross-functional processes. When workflows involve multiple departments or external stakeholders, swimlane diagrams prevent confusion about who handles each step.

The key to choosing the right format lies in matching your workflow's characteristics to each visualization method's strengths. Simple, linear processes work well with basic Kanban boards, while complex, multi-departmental workflows benefit from swimlane diagrams.

Document your chosen workflow visually using your selected format. This central, visual reference streamlines teamwork and avoids miscommunications by providing a single source of truth for process expectations. Include all task dependencies, decision points, and handoff requirements in your documentation.

Create a legend or key that explains your visual conventions. Define what different colors, shapes, or symbols mean within your workflow board context. This standardization ensures new team members can quickly understand and contribute to the workflow process.

Lean methodology in practice: match the board type to the management problem

Lean visual management works best when the board format fits the problem you are trying to control. Do not start with the board template. Start with the management need.

Management Need	Best-Fit Visual Board	What It Should Show	Review Rhythm
Manage work moving through stages	Kanban or workflow board	Backlog, active work, blocked work, done work, WIP limits	Daily or continuous
Track production against plan	Hour-by-hour board	Target, actual, gap reason, countermeasure	Hourly, shiftly, or daily
Run daily operations meetings	SQCDP board	Safety, Quality, Cost, Delivery, People status and actions	Daily
Sustain workplace organization	5S audit board	Audit schedule, score trend, findings, actions, standard photos	Weekly or scheduled
Control material replenishment	Kanban replenishment board	Cards/signals, min/max or reorder status, shortages	Continuous or daily
Escalate equipment issues	Maintenance or TPM board	Downtime, open work orders, PM status, chronic issues	Daily or weekly
Solve recurring problems	A3 or root cause board	Problem statement, current condition, cause analysis, countermeasures	Weekly or event-based
Manage improvement activity	Kaizen tracking board	Ideas, events, before/after, actions, owners, due dates	Daily during event; weekly after

A few practical design rules apply to almost every lean board:

• Make abnormal conditions visual. Red, yellow, blocked, overdue, or "help needed" indicators should stand out.

• Put decisions near the work. Boards used by frontline teams should be located where the work is discussed, not hidden in a conference room.

• Use physical space deliberately. If a section is important, give it enough room. Tiny action registers discourage use.

• Limit clutter. A board that tries to show everything usually helps with nothing.

• Show ownership. Names, initials, owner magnets, or lanes should make accountability obvious.

• Show timing. Due dates, aging, review dates, and shift/day markers prevent stale information.

• Include a board standard. Add a small "how to use this board" legend or standard work note.

Step 5: Communicate the Workflow Board to Your Team

Successful workflow board implementation depends on clear communication and team buy-in. Even the most thoughtfully designed board fails if team members don't understand how to use it effectively or why it benefits their daily work.

Present your workflow board in a dedicated team meeting where you can explain each element and answer questions in real time. Walk through several example scenarios that demonstrate how different types of tasks or projects would flow through the board. This hands-on explanation helps team members visualize how the board applies to their specific responsibilities.

Develop a communication plan that includes regular check-ins and feedback sessions during the initial implementation period. Schedule weekly touchpoints for the first month to address questions, confusion, or suggested improvements. This proactive communication approach prevents small issues from becoming major adoption barriers.

Effective communication about workflow processes prevents misinterpretation and encourages goal-driven collaboration across all team members. When everyone understands not just how to use the board, but why it exists and how it supports team goals, adoption rates increase significantly.

Create quick reference materials that team members can consult independently. A simple one-page guide explaining board conventions, common workflows, and troubleshooting steps empowers team members to use the board confidently without constant supervision.

Consider appointing workflow champions within your team who can provide peer support during the transition period. These champions help answer questions and reinforce proper board usage through informal coaching and encouragement.

Step 6: Schedule Regular Reviews to Monitor Progress

Periodic workflow reviews transform your visual board from a static tool into a dynamic system that continuously improves team performance. These structured evaluations help identify bottlenecks, celebrate successes, and adapt processes to changing business needs.

Establish recurring check-ins at intervals that match your workflow's natural rhythm. Weekly reviews work well for fast-moving projects with short task cycles, while monthly reviews suit longer-term initiatives or strategic planning workflows. In production environments, some boards require shiftly, daily, or even hourly review. The key is consistency rather than frequency.

Use concrete data points to drive your review discussions. Track metrics like task completion times, bottleneck frequency, missed deadlines, aging work, blocked work, rework, first-pass quality, schedule misses, and team satisfaction scores. These objective measures provide clear indicators of workflow effectiveness and highlight areas needing attention.

Uncovering bottlenecks with workflow visualization supports faster, smarter adjustments to team processes. Visual boards make performance patterns obvious, allowing teams to spot recurring problems and implement targeted solutions.

Create a simple review checklist that guides each session:

• Which tasks consistently take longer than expected?

• Where do tasks get stuck most frequently?

• Are team members clear about their responsibilities?

• What feedback has the team provided about the current process?

• Which workflow elements are working particularly well?

• Which overdue items need escalation?

• Which red metrics do not yet have countermeasures?

• Which closed actions need verification?

• Which board sections are not being updated or used?

Document review findings and the resulting process adjustments. This historical record helps teams understand how their workflows evolve over time and provides valuable context for future improvements.

Lean methodology in practice: review target vs. actual and respond with PDCA

In lean daily management, the review is not just "What happened?" It is:

1. What was the target?

2. What was the actual condition?

3. What is the gap?

4. What caused the gap?

5. What countermeasure are we testing?

6. Who owns it and by when?

7. How will we check whether it worked?

This is the Plan-Do-Check-Act cycle applied at the board.

A practical review standard can look like this:

Review Element	What to Ask	Board Evidence
Plan	What was supposed to happen?	Target, schedule, standard, due date
Do	What actually happened?	Actual result, completion status, observation
Check	What is the gap or abnormality?	Red/yellow signal, blocked card, missed target
Act	What are we doing next?	Countermeasure, owner, due date, escalation

For production boards, use reason codes or simple categories to understand recurring gaps. For example, if delivery misses occur repeatedly, categorize the reasons: material shortage, changeover delay, equipment downtime, quality hold, staffing gap, engineering change, or schedule conflict. Once reasons are visible, the team can use Pareto thinking to focus on the biggest drivers instead of treating every miss as a one-off incident.

A strong review routine has three levels:

1. Daily or shift review
   Focus on immediate abnormalities, safety issues, blocked work, and actions due now.

2. Weekly trend review
   Look for patterns: recurring bottlenecks, repeat defects, chronic late handoffs, or aging work.

3. Monthly improvement review
   Decide whether the workflow, staffing, standard work, training, or board design needs to change.

If the board does not change behavior during the review, it is not yet functioning as visual management. A board review should end with decisions, not just discussion.

Step 7: Refine and Improve Your Workflow Continuously

Workflow optimization is an ongoing process that requires regular refinement based on real-world experience and changing business requirements. The most effective visual workflow boards evolve continuously to serve their teams' changing needs.

Collect feedback systematically from all workflow participants. Create simple feedback mechanisms like monthly surveys, suggestion boxes, or dedicated discussion sessions where team members can propose improvements. Front-line workers often identify optimization opportunities that managers miss.

Documenting and refining workflows helps teams spot automation opportunities and boost performance significantly. As you refine your processes, look for repetitive tasks that could be automated, redundant steps that could be eliminated, or bottlenecks that could be resolved through resource reallocation.

Common refinement examples include reassigning steps to more appropriate team members, combining redundant stages that don't add value, introducing new workflow columns that provide better visibility into task status, or adding blocked-work indicators so problems surface earlier. Each adjustment should address a specific problem or opportunity identified through your regular reviews.

Test workflow changes incrementally rather than implementing major overhauls all at once. Small, focused improvements allow you to measure impact clearly and roll back changes that don't deliver expected benefits. This iterative approach reduces disruption while maintaining momentum toward better processes.

Celebrate workflow improvements with your team. When refinements lead to faster delivery times, reduced errors, improved safety response, fewer missed handoffs, or improved job satisfaction, acknowledge these wins publicly. Recognition reinforces the value of continuous improvement and encourages ongoing participation in optimization efforts.

Visual Workflow Board Design Checklist

Use this checklist before finalizing your board design.

Checklist Item	Yes / No
The board has a clearly defined purpose
The board shows normal vs. abnormal conditions
Every active task or issue has one clear owner
Due dates or timing expectations are visible
The team knows when and how the board is updated
Red or blocked items trigger a defined response
The board supports the team's daily or weekly cadence
Metrics are connected to action, not just reporting
The board includes a simple legend or usage standard
Old information is removed or archived regularly
Improvements and countermeasures are tracked to closure
The board is located where the team actually reviews the work

Example Factory Visual Management Board Layouts

Below are practical board layouts you can adapt for lean manufacturing, operations, maintenance, quality, or cross-functional teams.

1. Production Daily Management Board

Section	Purpose
Safety	Near misses, hazards, safety actions
Quality	Defects, scrap, rework, customer issues
Delivery	Schedule attainment, late orders, at-risk jobs
Cost	Downtime, waste, overtime, material loss categories
People	Staffing, training, attendance, support needed
Action Register	Owner, due date, countermeasure, status
Escalation Area	Issues requiring support beyond the team

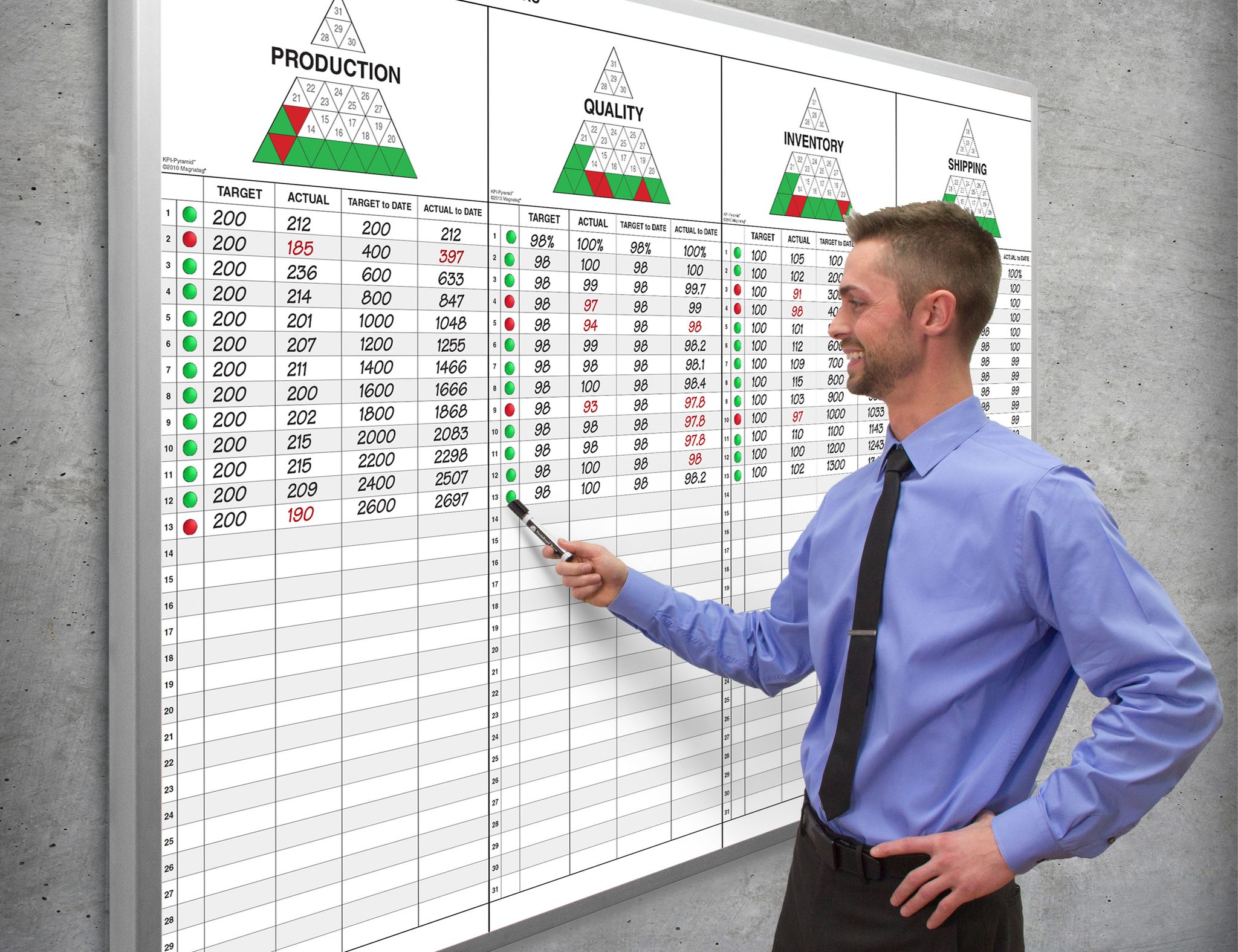

2. Hour-by-Hour Production Board

Section	Purpose
Hour or Time Block	Defines review intervals
Target	What should have been produced
Actual	What was produced
Gap	Difference between target and actual
Reason	Why the gap occurred
Countermeasure	Immediate response or escalation
Owner	Person responsible for follow-up

3. 5S Audit Board

Section	Purpose
Area Map	Defines audit scope
Sort	Unneeded items and red tags
Set in Order	Location, labeling, and organization checks
Shine	Cleanliness and inspectability
Standardize	Visual standards and checklists
Sustain	Audit completion and action closure
Before/After	Visual proof of improvement
Action Register	Findings, owners, due dates, status

4. Kaizen Event Board

Section	Purpose
Charter	Problem, scope, target condition
Current State	Process map and before photos
Waste Observed	Lean waste categories and examples
Ideas	Team suggestions and experiments
Future State	New workflow or standard
Action Items	Owners, due dates, status
Results	Before/after, impact, lessons learned
Sustainment	Follow-up checks and ownership

5. Maintenance / TPM Board

Section	Purpose
Equipment Status	Running, down, planned maintenance, watch item
Open Work Orders	Request, priority, owner, due date
Preventive Maintenance	PM schedule and completion status
Downtime Pareto	Top recurring equipment losses
Spare Parts Issues	Shortages or critical parts
Countermeasures	Actions for chronic downtime
Escalations	Issues requiring engineering, purchasing, or leadership support

Frequently Asked Questions

What are the key benefits of using a visual workflow board?

Visual workflow boards simplify complex processes by making abstract workflows concrete and actionable. They improve clarity by showing exactly where each task stands in the overall process, highlight bottlenecks before they become major problems, and foster collaboration by providing a shared understanding of team responsibilities.

Teams using visual workflow boards, like those created with Magnatag, make decisions faster because they can quickly assess current status, resource allocation, blocked work, and ownership without lengthy status meetings or email chains. In lean manufacturing environments, the board also helps expose abnormalities, support daily management, and connect problems to countermeasures.

What is visual management in lean manufacturing?

Visual management in lean manufacturing is the practice of making work status, standards, problems, and performance visible so teams can understand the current condition at a glance and take action. The goal is not decoration or reporting. The goal is faster recognition and response.

A lean visual management system often includes production boards, SQCDP boards, 5S audit boards, Kanban systems, Andon signals, hour-by-hour boards, training matrices, maintenance boards, A3 boards, and kaizen tracking boards. The best systems show the gap between target and actual and make ownership of the next step clear.

How do I choose between different types of workflow boards?

Select your workflow board type based on your process complexity, team structure, and management need. Kanban boards excel at managing task flow through predictable stages, making them ideal for development teams, content creation workflows, internal service queues, replenishment systems, or maintenance requests.

Flowcharts work best for mapping decision-heavy processes with multiple possible outcomes, such as customer service escalation procedures or quality containment decisions. Swimlane diagrams provide the clearest view of role-based responsibilities in cross-functional workflows involving multiple departments or external stakeholders.

For factory daily management, consider SQCDP boards, hour-by-hour boards, 5S boards, kaizen boards, and production control boards depending on the problem you need to manage.

What should be included on a production visual management board?

A production visual management board should show the information the team needs to run the day and respond to abnormalities. Common sections include:

• Safety status and open safety actions

• Quality issues, defects, scrap, or rework

• Production plan vs. actual output

• Delivery risks or late orders

• Equipment downtime or maintenance concerns

• Staffing and training needs

• Material shortages or constraints

• Blocked work or escalations

• Countermeasures with owners and due dates

The most important section is usually the action register. If the board shows red metrics but does not track owners and countermeasures, it is reporting performance, not managing performance.

How often should a visual workflow board be updated or reviewed?

Review your workflow board regularly to ensure it reflects current priorities and processes. Weekly reviews work well for fast-paced project teams with short task cycles, while monthly reviews suit longer-term projects or strategic initiatives.

In manufacturing and operations environments, many boards require a faster cadence:

• Hour-by-hour boards: updated during the shift

• SQCDP boards: reviewed daily

• Tier meeting boards: reviewed at each tier cadence

• 5S audit boards: updated during scheduled audits and action reviews

• Kaizen boards: updated daily during events and weekly during follow-up

• Project boards: updated at least weekly, or whenever status changes

The key is establishing a consistent rhythm that catches emerging bottlenecks early while avoiding review fatigue. Update the board immediately when processes change, but evaluate the board's overall effectiveness during scheduled review sessions.

What is an SQCDP board?

An SQCDP board is a lean daily management board organized around Safety, Quality, Cost, Delivery, and People. It helps teams review performance in a balanced way so one priority does not hide another. For example, a team should not celebrate delivery success if quality issues, safety risks, or staffing problems are being ignored.

An SQCDP board is usually reviewed during a short daily huddle. Each red or abnormal condition should have a countermeasure, owner, and due date. Issues that cannot be solved at the frontline level should be escalated through the tier management process.

How is a 5S audit board different from a general workflow board?

A general workflow board tracks work moving through a process. A 5S audit board tracks workplace organization and sustainment against defined standards. It typically includes the five 5S categories: Sort, Set in Order, Shine, Standardize, and Sustain.

A strong 5S audit board should include audit criteria, schedule, area ownership, score or status trend, red-tag items, before/after photos, and an action register. The action register is what turns a 5S board from a scoring tool into an improvement tool.

How do kaizen event tracking boards support continuous improvement?

Kaizen event tracking boards make improvement work visible. They help teams track the event charter, current state, waste observed, improvement ideas, future state, action items, owners, due dates, before/after results, and sustainment checks.

The board prevents a common kaizen failure: generating good ideas during the event but losing follow-through afterward. By keeping actions visible until closure, the team can verify whether improvements were implemented and sustained.

What common challenges arise when implementing a workflow board?

Teams frequently encounter resistance to new tools, especially from members comfortable with existing processes. Combat this by clearly communicating benefits and providing adequate training. Unclear role definitions create confusion about who updates the board and when, so establish specific responsibilities for board maintenance.

Inconsistent updates render boards useless, making it essential to integrate board updates into daily routines rather than treating them as optional activities. Other common issues include:

• Too many metrics and not enough action

• Board located away from the work

• Red items without owners

• Old information left on the board

• Leadership using the board for blame instead of problem solving

• No standard for colors, symbols, or status definitions

• Digital and physical systems that contradict each other

• Board reviews that become long meetings instead of focused decisions

How can visual workflow boards improve team collaboration and accountability?

Visual workflow boards increase transparency by making task ownership and status visible to all team members. This visibility eliminates the need for constant status check-ins and reduces the risk of tasks falling through the cracks. Team members can quickly identify dependencies, offer assistance when colleagues are overloaded, and coordinate their efforts more effectively.

The public nature of visual boards also creates natural accountability, as everyone can see who owns which tasks and how quickly work progresses through the system. In a lean environment, this accountability should be process-focused rather than blame-focused. The board should help the team ask, "What in the process allowed this gap to happen, and what countermeasure are we testing?"

What is the difference between a Kanban board and a visual management board?

A Kanban board is one type of visual management board. It is designed to manage flow, limit work in process, and show work moving through defined stages. A visual management board is a broader category that can include Kanban boards, SQCDP boards, 5S audit boards, hour-by-hour boards, kaizen boards, A3 boards, and other visual controls.

Use a Kanban board when the main problem is managing work-in-process and flow. Use other visual management formats when the main problem is daily performance, safety, quality, 5S sustainment, improvement tracking, or escalation.

Should a visual workflow board be physical, digital, or both?

The right format depends on where the work happens and how the team manages it. Physical boards are especially effective in factories, warehouses, labs, maintenance shops, and team areas where people gather around the work. They are visible, immediate, and easy to update during a standup.

Digital boards are useful for remote teams, multi-site workflows, and processes that require system integration or historical reporting. Many organizations use both: a physical board for daily management at the point of work and a digital system for recordkeeping, reporting, or cross-site visibility.

The key is to avoid duplicate systems that disagree. If you use both, define which system is the source of truth for each type of information.

Final Takeaway

A visual workflow board is effective when it changes the way the team manages work. It should make priorities visible, expose problems early, clarify ownership, and create a reliable cadence for action. In lean manufacturing, the board should also reinforce standard work, daily management, 5S discipline, problem solving, and continuous improvement.

Start with the workflow goal. Break the work into visible steps. Assign clear ownership. Choose the right board format. Communicate the system. Review it consistently. Improve it continuously.

When those seven steps are followed, the board becomes more than a place to write updates. It becomes a practical management system the team can use every day.
